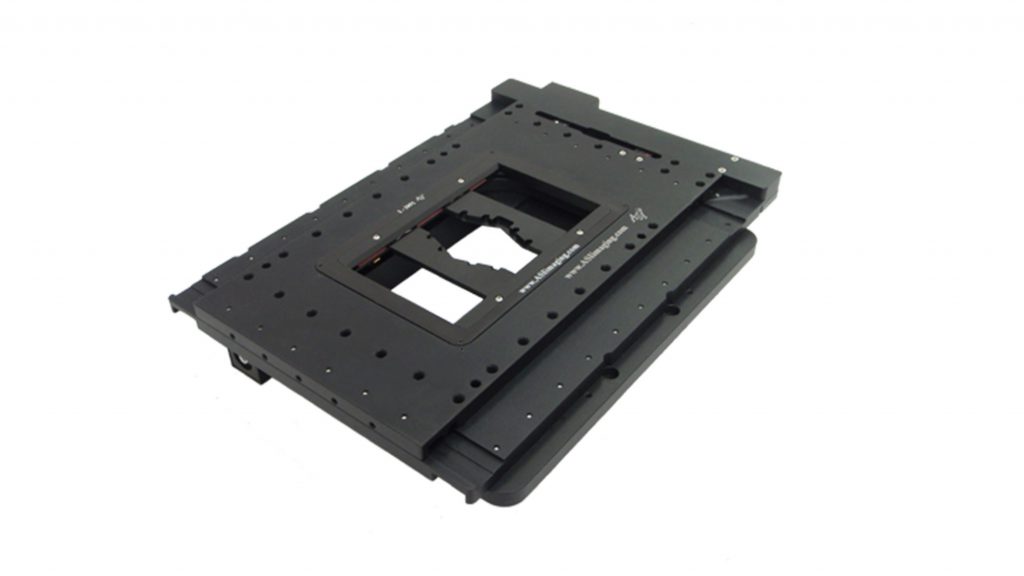

The MS-2000 Flat Top XY stage has been specifically designed to provide a high resolution, and highly repeatable, means of controlling the X, Y position of the microscope stage. The stage can be used in conjunction with ASI’s proven line of Z-axis motor drives, each custom fitted to the microscope, for complete X, Y, and Z positioning. All axes derive their precise control through the use of closed-loop DC servomotors employing high-resolution rotary encoders for positioning feedback. By using closed-loop control of the stage position, there is no chance that the stage will become lost, as can occur with open-loop micro-stepped stages after a number of moves and direction changes. The MS-2000 XY stage utilizes crossed-roller slides, a high-precision lead screw, and zero-backlash miniature geared DC servomotors for smooth and accurate motion. The microprocessor-controlled MS-2000 control unit provides for RS-232 and USB communication with a host computer.
MS-2000 Features
Closed-loop DC servo control of the X and Y axes for precise positioning and highly repeatable focusing
Wide dynamic speed range with XY joystick control
Utilizes ASI’s proven Z-axis drives
Z-axis clutch for easy switching between manual and motor-driven focus control
Backlit LCD display shows X, Y, and Z coordinates
“Zero” and “Home” button for simple stand-alone operations
Compact ergonomic tabletop control unit size is 6”D x 9”W x 3”H (9 x 23 x 16½ cm)
Microprocessor control with RS-232 serial and USB communications
Proven operation with many popular software packages
Travel range will scan full well plate in most circumstances
MS-2000 Options
Piezo Top Plates with Z ranges of 150, 300, and 500 µm
X and Y axes Linear Encoders for high-accuracy positioning
Larger stage top plate for attachment of micromanipulators, microinjectors, etc.
Stage Wings for even more room for attachments
Auto-Focus for stages with ASI Z-axis drives (requires NTSC, PAL, or S-Video analog signal)
