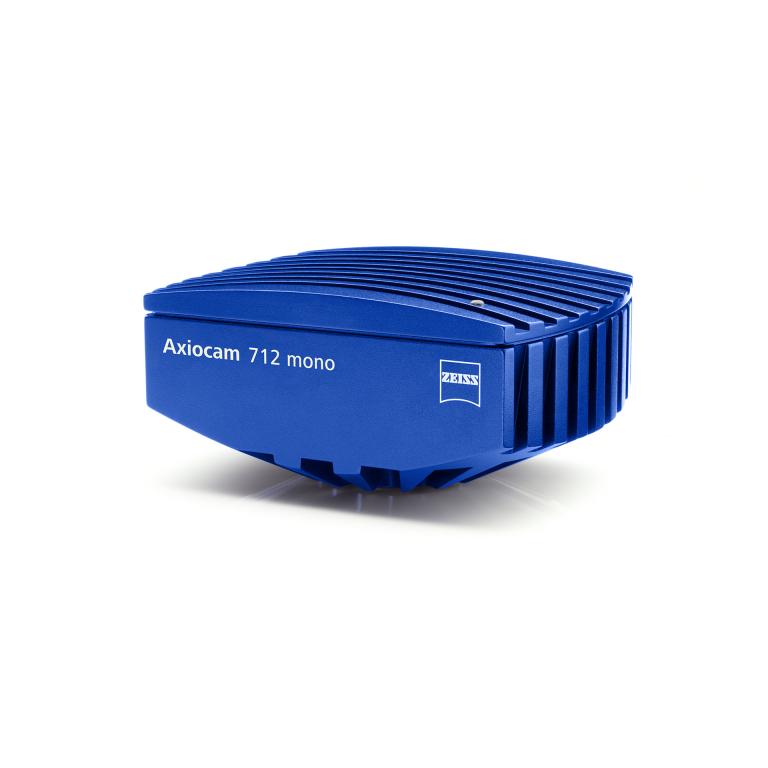

ZEISS | Axiocam 712 mono - 12 Megapixel Microscope Camera for Fast High Resolution Imaging of Large Areas
The Axiocam 712 mono offers high sensitivity with low noise for applications requiring the highest sensitivity, thanks to its 12-megapixel sensor and large sensor. Combining a large sensor with a multitude of small and sensitive pixels, your Axiocam 712 mono is a very flexible camera suitable for numerous different applications. The actively cooled CMOS sensor provides the lowest readout noise and stable operation over long periods of time. Exposure times can range from 100 µs for the most dynamic samples up to 60 s for capturing the weakest signals.
Carl Zeiss Microscopy GmbH
ZEISS | Axiocam 712 mono 12 Megapixel Microscope Camera for Fast High Resolution Imaging of Large Areas
Carl Zeiss Microscopy GmbHCarl-Zeiss-Promenade 10
07745 Jena
Deutschland
Phone Sales: +49 7364 20 3500
Email Sales:
Phone Service: +49 7364 20 3800
Email Service:
Fax: +49 7364 20 3226
Web: https://www.zeiss.com/microscopy
Quote request
ManufacturerCarl Zeiss Microscopy GmbH
The request is sent to the manufacturer. The request is sent directly.
Description
This camera delivers more than 20 frames per second at full pixel count and can exceed 100 frames per second with reduced pixel count. With a peak quantum efficiency of over 72%, a wide detection spectrum, and high sensitivity in the near-infrared range, the camera's set of excellent features is completed. This makes the Axiocam 712 mono your all-in-one tool for monochrome imaging applications, from imaging large sample areas and dynamic samples to highly sensitive microscopy of fragile fluorescent specimens.
ZEISS Axiocam 712 mono Recommended for:
- High-resolution fluorescence microscopy
- Large region imaging
- Research
- Live cell imaging
- Macroscopic imaging
Highlights of Axiocam 712 mono:
- 12-megapixel cooled global-shutter CMOS sensor
- Large sensor for extended field of view
- Wide sensitivity spectrum from 350 nm to 1000 nm
- 20 frames per second in full 12-megapixel resolution
- 30 frames per second of the entire field of view in live image mode
- Low readout noise and analog signal amplification
- Exclusive noise inhibition technology for low-light imaging
- Dynamic range of 1:25,000 in high-dynamic range (HDR) mode
- Small 3.45 µm pixels for high-resolution imaging
- Hardware triggering
