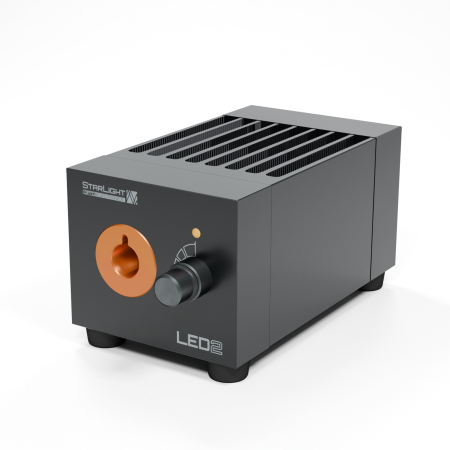

StarLight Opto-Electronics | SILENT LIGHT LED Cold Light Source LED2
The SILENT LIGHT LED2 cold light source from StarLight Opto-Electronics is a compact, energy-efficient solution for industrial endoscopy and microscopy. With passive cooling, this fanless unit operates completely vibration- and noise-free. It provides excellent brightness, especially with smaller light guide diameters.
StarLight Opto-Electronics
StarLight Opto-Electronics | SILENT LIGHT LED Cold Light Source LED2
StarLight Opto-Electronics GmbH & Co. KGFlachslander Str. 8
90431 Nürnberg
Germany/Deutschland
Phone/Telefon: +49 911 462678 10
Fax: +49 911 462678 19
E-Mail:
E-Mail:
WEB: https://starlight-oe.com/
Shop: https://shop.starlight-oe.com/en/
Quote request
ManufacturerStarLight Opto-Electronics
The request is sent to the manufacturer. The request is sent directly.
Description
Its daylight-like color temperature of 5,700 K and a typical CRI of 70 ensure even, homogeneous illumination. Optimized electronics provide flicker-free lighting, making it ideal for camera applications. Additional features include glare protection via light guide detection, memory function for brightness settings, and a durable aluminum housing with a modern design.
Features:
Ideal for industrial endoscopy
Passive, fanless cooling
Fully vibration- and noise-free
Anti-glare function with light guide detection
Compatible with various light guide adapters
Flicker-free illumination
Memory function for brightness settings
Brightness adjustable from 0 to 100%
Sturdy aluminum housing with modern aesthetics
Technical Data
| Category | Specification |
|---|---|
| Light Source | High Power LED |
| Risk Group | 2 |
| Active Light Guide Ø | Max. 11 mm |
| Color Temperature | 5,700 K |
| Color Rendering Index | CRI 70 (typ.) |
| Luminous Flux | Approx. 530 lm* |
| Power Consumption | Approx. 22 W |
| Power Supply Input | 100 – 240 V AC, 50/60 Hz |
| Power Supply Output | 24 V DC, 1 A |
| Protection Class | II |
| Temperature Range | 5 °C – 40 °C |
| LED Lifetime | 36,000 h (L80 per manufacturer) |
| Protection Rating | IP20 |
| Weight | Approx. 1.6 kg |
| Dimensions | 176.8 × 90 × 85 mm (L × W × H) |
| Color | Black and orange |
| Material | Anodized aluminum |
| Light Guide Port | Standard Ø 15 mm |
| Measured with StarLight fiber light guide, Ø 9 mm, L=1000 mm |
