Leistungselektronik JENA GmbH | Luxyr LH LED 100 1-channel Vis LED light source
Leistungselektronik JENA GmbH
LEJ - Leistungselektronik JENA GmbH | Luxyr LH LED 100 1-channel Vis LED light source
Leistungselektronik JENA GmbHStockholmer Str. 5
D-07747 Jena
Germany
Phone: +49 3641 3530-30
Fax: +49 3641 3530-70
Mail:
WEB: https://lej.de/en/products/
Quote request
ManufacturerLeistungselektronik JENA GmbH
The request is sent to the manufacturer. The request is sent directly.
Description

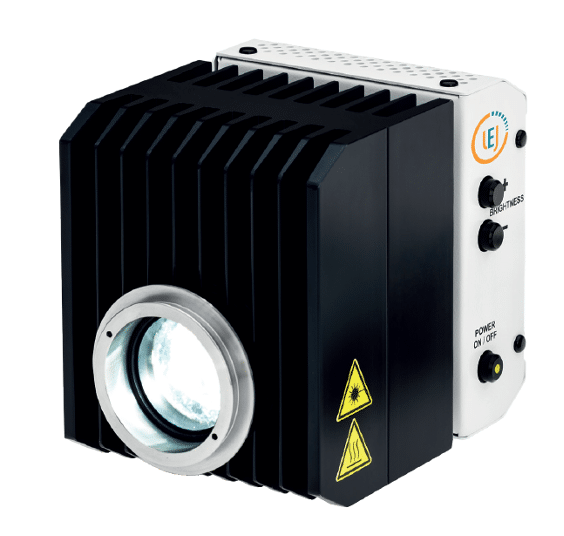

LH LED 100
The LH LED 100 is a 1-channel LED light source for microscopy, serving as a cold light source or an upgrade for halogen light sources.
The luxyr LED PICO offers maximum variability and optical performance for a wide range of microscopy and illumination applications. Various adapters, customizable to meet customer requirements, allow connection to all common microscopes and optical setups.
The system is conveniently operated via a PC application or control panel. Pulse and level controlled operation are also possible. This is also controlled via a computer application. Thus, even demanding illumination tasks and time series experiments can be realized.
Product Highlights:
- Homogeneous illumination
- High luminous flux (CW up to 800 lm)
- Gamma corrected brightness control
- Pulsed operation up to 100 kHz possible
- Silent and vibration-free operation
- Compact design and lightweight
- Different LED versions available
Application Areas:
- Fluorescence microscopy
- Brightfield and darkfield microscopy
- Image processing and optical inspection
- Semiconductor manufacturing
- Forensics
| Features | Specifications |
|---|---|
| Trigger Frequency | Max. 26 kHz, switching time approx. 40 μs |
| Dimming | Electronic, 200 steps 0.2-100%, 0.2-30% PWM, 30-100% analog |
| Safety | Over-temperature protection |
| Interfaces | Remote controller, USB- or CAN-Bus interface, optional analog control voltage |
| Collimator + Adapter | Zeiss, Leica, Nikon, Olympus |
| Mains voltage | 12 VDC ± 5%, external power supply 100-240 VAC, 50-60 Hz |
| Power input | Max. 50 VA |
| Dimensions | Width x Height x Depth: 120 mm x 125 mm x 140 mm |
| Weight | 2.0 kg |
| Order | Scope of delivery: LH-LED 100, power supply, manual |
| Accessory | Remote controller |
